Grain-size evolution in subducted oceanic lithosphere associated with the olivine-spinel transformation and its effects on rheology

Received 6 June 1996; accepted 22 January 1997

Abstract

We investigate the role of grain-size reduction during the olivine-spinel transformation on rheological properties of subducting slabs on the basis of a scaling model for microstructural development during nucleation and growth. In this model, the size of spinel grains nucleating at olivine grain boundaries is controlled by the relative rates of nucleation and growth, taking into account the impingement through the collision of grains due to growth. When the volume fraction of spinel reaches a certain threshold value (critical volume fraction ~1-10%, depending on the P-T conditions in the slab), the new phase will form a continuous film and will significantly reduce the strength of the two-phase aggregate, if spinel grain size is small. The size of spinel grains, ₀, at this stage is calculated and is shown to be highly sensitive to temperature. At relatively high temperatures (T>1000 K), ₀ shows an Arrhenius-type dependence on temperature; that is, ₀~exp(-E^*/RT) with E^*~400 kJ/mol, whereas a more complicated temperature dependence is found at low temperatures (T<900 K), where a grain-size reduction of up to 4 orders in magnitude is possible.

Strength profiles of slabs due to combined effects of temperatures and of grain-size reduction are calculated. It is shown that: (1) the strength of slabs will have an unusual temperature dependence through the temperature dependence of grain size; and (2) a subducting slab has a complicated rheological structure containing a weak region below the tip of a metastable olivine-bearing wedge in a cold slab. Possible implications of these anomalous rheological structures of slabs on the dynamics of subduction are discussed, including the mechanisms of deep earthquakes.

Keywords: subduction zones, rheology, phase transitions, deep-focus earthquakes, grain size, kinetics

Printable version available (780 kB)

Table of contents

1. Introduction
2. Thermal structure of subducted slabs and phase transformation kinetics
3. Grain-size evolution in subducting slabs
4. Rheological structure of subducted slabs
5. Results and discussion
6. Conclusions

• Acknowledgement
• Appendix 1
• References
  • Body of article in one file



  (32681 bytes)

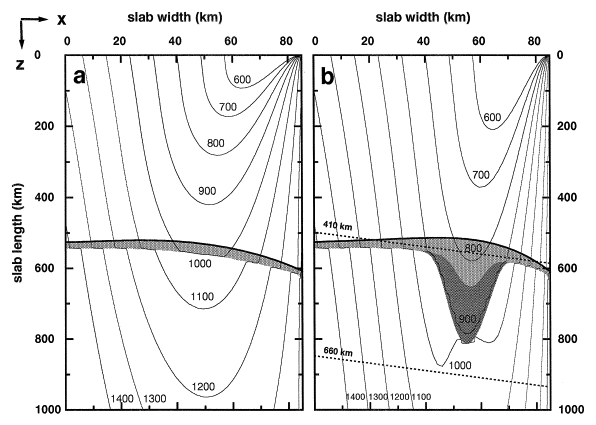

  Fig. 1. Slab geometry used for the numerical model. The slab is considered as a rigid body with thickness L and a fixed length of 1000 km. The penetration angle is 45° (upper surface of the slab at the right side). Isotherms (in Kelvin) are calculated using McKenzie's model [11][12], corrected with the latent heat feedback. The bold line shows the phase equilibrium boundary of olivine and -spinel, according to the thermodynamic data of Akaogi et al. [44] Table 1 . (a) v_slab=4 cm/yr, L=85 km, Re=59.30. (b) v_slab=10 cm/yr, L=85 km, Re=148.25. The metastability region of pure olivine (grey) and the region with mixed olivine-spinel aggregates (dark grey) are shown. (to main text)
  (14222 bytes)

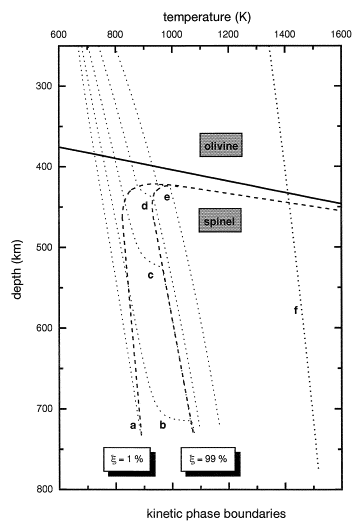

  Fig. 2. P-T phase diagram showing the kinetic phase boundaries for 1% and 99% transformation degree (dashed lines). The thick line shows the phase equilibrium of olivine and -spinel, according to the thermodynamic data of Akaogi et al. [44]. The adiabats a-e represent the P-T paths of the coldest portion of a slab (v_slab=10 cm/yr) with different thicknesses: (a) L=100 km; (b) L=90 km; (c) L=80 km; (d) L=70 km; (e) L=60 km; (f) boundary condition of the McKenzie model. (to main text)
  (8494 bytes)
  Fig. 3. Grain-size reduction accompanying the olivine->spinel transformation and subsequent grain growth in the coldest portion of downgoing slabs. The P-T paths and the labelling as in Fig. 2 . Spinel grain growth (not included in the model) would increase again the grain size at greater depth depending on the P-T conditions. (to main text)
  (19560 bytes)

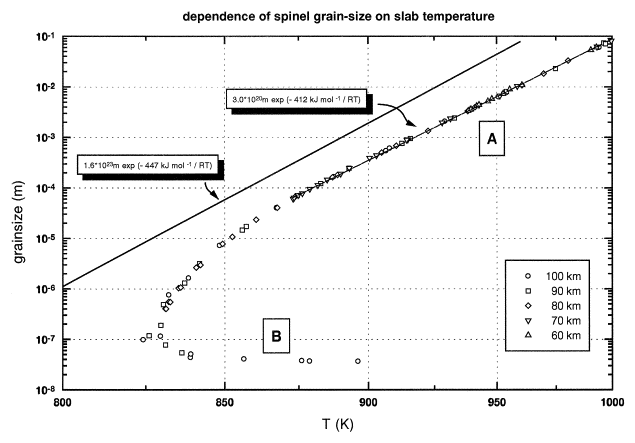

  Fig. 4. Arrhenius plot of spinel grain size (logarithmic scale) vs. temperature (reciprocal scale), both numerically determined at the first kinetic phase boundary (=1%) for different slab thicknesses. The symbols show the values obtained of spinel grain size at =1% for different subducting layers of lithosphere across the slab. Above 900 K, they follow an Arrhenius dependence with an apparent "activation energy" of about 412 kJ/mol (branch A). Shown as a thick solid line is the semi-analytical solution of Eq. A6 , predicting a slightly higher value of 447 kJ/mol. Note that, within the metastable wedge, the apparent "activation energy" for spinel grain size can be negative (branch B). Predicted grain sizes exceeding ~3 mm are not realistic since the presence of secondary phases such as pyroxenes and garnets prevents the formation of larger spinel grains. (to main text)
  (17826 bytes)

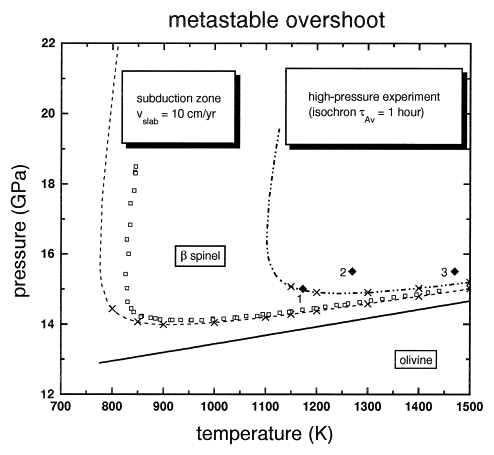

  Fig. 5. Calculated metastable overshoot P=P_kin-P_eq of olivine over the equilibrium pressure with -Mg₂SiO₄ (Eq. A6 ) under subduction zone conditions (dashed line). The squares show the numerically calculated onset of transformation at =1% for a slab with thickness L=100 km (integration of the differential Eq. A4 Eq. A5 , thick line=phase equilibrium). For comparison, the isochron _Av=1 h is included, showing the expected location of the kinetic phase boundary at the laboratory time scale (dash-dotted curve). At the geological time-scale, wedge formation sets in at temperatures below 850 K. A compilation of some spinel grain sizes at selected P-T conditions (crosses) is given in Table 3 ; solid diamonds mark the reported P-T conditions of three different high pressure experiments: (1) P=15 GPa, T=1173 K [36], spinel grain size1 µm, Eq. 6 predicts 1.8 µm; (2) P=15.5 GPa, T=1273 K [16], spinel grain size1.8 µm, Eq. 6 predicts 0.4 µm, (3) P=15.5 GPa, T=1473 K [46], spinel grain size not mentioned, Eq. 6 predicts 4.6 µm. (to main text)
  (19034 bytes)

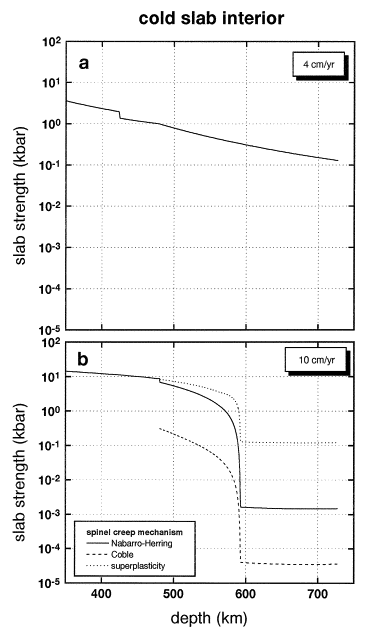

  Fig. 6. Creep strength of the slab shown in Fig. 1 along its coldest part (slab thickness 85 km) below 400 km. The grain size reduction produces a strength drop of several orders in magnitude, in dependence of the relevant spinel creep mechanism. An average strain rate of 10^-15 s^-1 is assumed uniformly across the slab. (to main text)
  (43939 bytes)

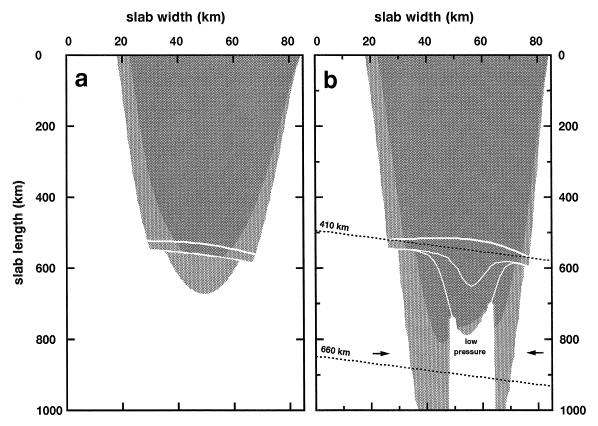

  Fig. 7. Calculated strength profile of the slab shown in Fig. 1 on the basis of a Nabarro-Herring creep mechanism for spinel (m=2 and n=1 in Eq. 13 ). The creep strength of spinel is assumed to be bounded by the olivine creep strength within the slab. The grey area shows the slab portions with a creep strength higher than 100 MPa; the dark grey shows the slab portions with a creep strength higher than 200 MPa. Note the dramatic strength drop below the tip of the metastable wedge. Spinel grain growth (not included in the model) would cause a significant decrease in the size of the weak zone below the metastable wedge. The two arrows indicate the possible effect of a sustainable pressure drop in the cold interior of fast slabs (see discussion). (to main text)




  References

  1. P.J. Vaughan and R.S. Coe, Creep mechanism in Mg₂GeO₄: Effects of a phase transition, J. Geophys. Res. 86, 389-404, 1981. (abstract)
  2. D.C. Rubie, The olivine->spinel transformation and the rheology of subducting lithosphere, Nature 308, 505-508, 1984.
  3. S. Karato, Phase transformations and the rheological properties of mantle minerals, In: Earth's Deep Interior (the Doornbos Volume), D. Crossley and A.M. Soward, eds., in press, Gordon and Breach, 1997.
  4. E. Ito and H. Sato, A seismicity in the lower mantle by superplasticity of the descending slab, Nature 351, 140-141, 1991. (abstract)
  5. H.W. Green II and P.C. Burnley, A new self-organizing mechanism for deep-focus earthquakes, Nature 341, 733-737, 1989. (abstract)
  6. M.R. Riedel and S. Karato, Microstructural development during nucleation and growth, Geophys. J. Int. 125, 397-414, 1996. (abstract)
  7. S.H. Kirby, Rheology of the lithosphere, Rev. Geophys. Space Phys. 21, 1458-1487, 1983. (abstract)
  8. S. Karato, Plasticity-crystal structure systematics in dense oxides and its implications for the creep strength of the Earth's deep interior: A preliminary result, Phys. Earth Planet. Inter. 55, 234-240, 1989. (abstract)
  9. M.R. Handy, Flow laws for rocks containing two non-linear viscous phases: a phenomenological approach, J. Struct. Geol. 16, 287-301, 1994. (abstract)
  10. D.C. Rubie and C.R. Ross II, Kinetics of the olivine-spinel transformation in subducting lithosphere: experimental constraints and implications for deep slab processes, Phys. Earth Planet. Inter. 86, 223-241, 1994. (abstract)
  11. D. P McKenzie, Speculations on the consequences and causes of plate motions, Geophys. J.R. Astron. Soc. 18, 1-32, 1969.
  12. D.P. McKenzie, Temperature and potential temperature beneath island arcs, Tectonophysics 10, 357-366, 1970.
  13. P. Molnar, D. Freedman and J.S.H. Shih, Lengths of intermediate and deep seismic zones and temperatures in downgoing slabs of lithosphere, Geophys. J.R. Astron. Soc. 56, 41-54, 1979.
  14. T. Lay, The fate of descending slabs, Annu. Rev. Earth Planet. Sci. 22, 33-62, 1994.
  15. D.C. Rubie, Y. Tsuchida, T. Yagi, W. Utsumi, T. Kikegawa, O. Shimomura, and A.J. Brearley, An in situ X-ray diffraction study of the kinetics of the Ni₂SiO₄ olivine-spinel transformation, J. Geophys. Res. 95, 15,829-15,844, 1990. (abstract)
  16. K. Fujino and T. Irifune, TEM studies on the olivine to modified spinel transformation in Mg₂SiO₄, In: High Pressure Research: Application to Earth and Planetary Sciences, Y. Syono and M.H. Manghnani, eds., pp. 237-243, Terra, 1992.
  17. A.J. Brearley and D.C. Rubie, Transformation mechanisms of San Carlos olivine to -phase under subduction zone conditions, Phys. Earth Planet. Inter. 86, 45-67, 1994. (abstract)
  18. J.W. Christian, The theory of transformations in metals and alloys. Vol. I. Equilibrium and general kinetic theory, Pergamon, Oxford, 2nd ed., 1975.
  19. R. Dässler, D.A. Yuen, S. Karato and M.R. Riedel, Two-dimensional modeling of thermokinetic coupling and the consequences on the phase boundaries of subducting slabs, Phys. Earth Planet. Inter. 94, 217-239, 1996. (abstract)
  20. J.W. Cahn, The kinetics of grain boundary nucleated reactions, Acta Metall. 4, 449-459, 1956.
  21. R. Dässler and D.A. Yuen, The effects of phase transition kinetics on subducting slabs, Geophys. Res. Lett. 20, 2603-2606, 1993. (abstract)
  22. W.H. Press, B.P. Flannery, S.A. Teukolsky, and W.T. Vetterling, Numerical Recipes: The Art of Scientific Computing, Cambridge Univ. Press, Cambridge, 1989.
  23. D.T. Griggs, The sinking lithosphere and the focal mechanism of deep earthquakes, In: The Nature of the Solid Earth, E.C. Robertson, J.F. Hays and L. Knopoff, eds., pp. 361-384, McGraw-Hill, New York, NY, 1972.
  24. S.H. Kirby, S. Stein, E. Okal and D.C. Rubie, Metastable mantle phase transformations and deep earthquakes in subducting oceanic lithosphere, Rev. Geophys. 34, 261-306, 1996.
  25. S. Karato, Grain-size distribution and rheology of the upper mantle, Tectonophysics 104, 155-176, 1984. (abstract)
  26. S. Karato, M.S. Paterson and J.D. Fitz Gerald, Rheology of synthetic olivine aggregates: influence of grain size and water, J. Geophys. Res. 91, 8151-8176, 1986.
  27. S. Karato and P. Wu, Rheology of the Upper Mantle: A Synthesis, Science 260, 771-778, 1993. (abstract)
  28. T.N. Tingle, H.W. Green II and R.S. Borch, High-temperature creep experiments on the olivine and spinel polymorphs of Mg₂GeO₄: implications for the rheology of the Earth's mantle, EOS Trans. AGU 72, 297, 1991.
  29. G.Y. Bussod, T. Katsura and D.C. Rubie, The large volume multi-anvil press as a high P-T deformation apparatus, Pure Appl. Geophys. 141, 579-599, 1993.
  30. C. Dupas, N. Doukhan, J.-C. Doukhan, H.W. Green II and T.E. Young, Analytical electron microscopy of a synthetic peridodite experimentally deformed in the olivine stability field, J. Geophys. Res. 99, 15,821-15,832, 1994. (abstract)
  31. C. Goetze and B. Evans, Stress and temperature in the bending lithosphere as constrained by experimental rock mechanics, Geophys. J.R. Astron. Soc. 59, 463-478, 1979.
  32. M.F. Ashby and R.A. Verrall, Micromechanisms of flow and fracture, and their relevance to the rheology of the upper mantle, Philos. Trans. R. Soc. London A 288, 59-95, 1977.
  33. Y. Okamoto, Creep deformation mechanisms in oxides and deformation of spinel ferrites, In: Rheology of Solids and of the Earth, S. Karato and M. Toriumi, eds., Chapt. 6, pp. 83-104, Oxford Sci. Publ., Oxford, 1989.
  34. G. Ranalli, Rheology of the Earth, Chapman and Hall, London, 2nd ed., 1995.
  35. V S. Solomatov and D.J. Stevenson, Can sharp seismic discontinuities be caused by non-equilibrium phase transformation?, Earth Planet. Sci. Lett. 125, 267-279, 1994. (abstract)
  36. D.C. Rubie and A.J. Brearley, Mechanism of the - phase transformation of Mg₂SiO₄ at high temperature and pressure, Nature 348, 628-631, 1990. (abstract)
  37. A.J. Brearley, D.C. Rubie and E. Ito, Mechanisms of the transformations between the , and polymorphs of Mg₂SiO₄ at 15 GPa, Phys. Chem. Miner. 18, 343-358, 1992.
  38. S.H. Kirby, Interslab earthquakes and phase changes in subducting lithosphere, Rev. Geophys. Suppl., US Natl. Rep. IUGG 1991-1994, pp. 287-297, 1995.
  39. L. Kerschhofer, T.G. Sharp and D.C. Rubie, Intracrystalline transformation of olivine to wadsleyite and ringwoodite under subduction zone conditions, Science 274, 79-81, 1996.
  40. S.H. Kirby and E. Okal, Geodynamic implications of deep earthquakes beneath the Fiji basin: Seismic failure in slabs stagnated in the mantle's transition zone, EOS Trans. AGU 77, 498, 1996.
  41. P.C. Burnley, H.W. Green II and D.J. Prior, Faulting associated with the olivine to spinel transformation in Mg₂GeO₄ and its implications for deep-focus earthquakes, J. Geophys. Res. 96, 425-443, 1991. (abstract)
  42. S.H. Kirby, W.B. Durham and L.A. Stern, Mantle phase changes and deep-earthquake faulting in subducting lithosphere, Science 252, 216-225, 1991. (abstract)
  43. D.L. Turcotte and G. Schubert, Geodynamics. Applications of Continuum Physics to Geological Problems, Wiley, New York, NY, 1982.
  44. M. Akaogi, E. Ito and A. Navrotsky, Olivine-modified spinel-spinel transitions in the system Mg₂SiO₄-Fe₂SiO₄: calorimetric measurements, thermochemical calculation, J. Geophys. Res. 94, 15,671-15,685, 1989. (abstract)
  45. S. Karato, Rheological properties of materials composing the Earth's mantle, PhD Thesis, Univ. Tokyo, 1977.
  46. D.C. Rubie and A.J. Brearley, Phase transitions between - and -(Mg, Fe)₂SiO₄ in the Earth's mantle; mechanisms and rheological implications, Science 264, 1445-1448, 1994. (abstract)
